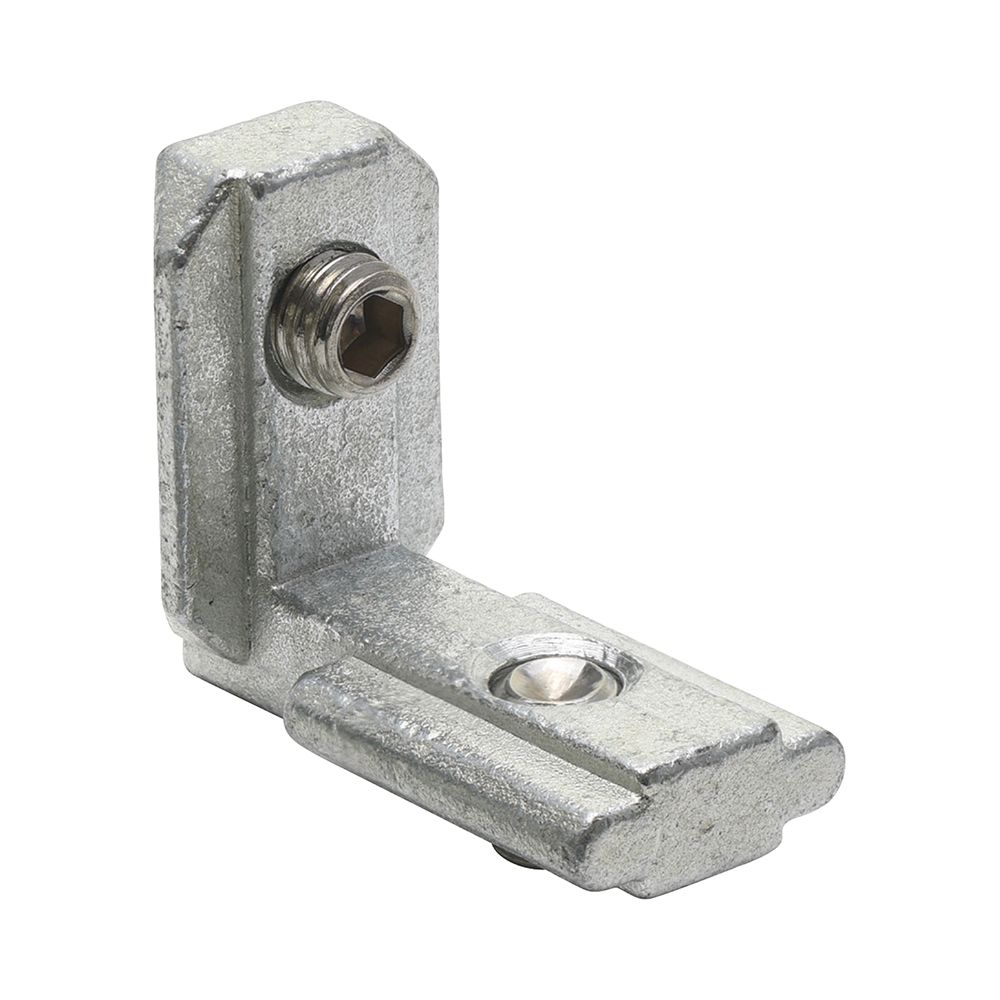

Special Steel Corner Groove Connector For European Standard Aluminum Profiles With Groove Width Of 10 Mm - MISUMI

Mã sản phẩm: 9i8Dm Tình trạng: Còn hàng

Thương hiệu: MISUMI Loại sản phẩm: Special Steel Corner Groove Connector For European Standard Aluminum Profiles With Groove Width of

Giá: 69,621₫

Số lượng:

Miễn phí vận chuyển

Đơn hàng từ 5000k

Mã:

HSD: 30/12/2023

Giảm tới 3%

Đơn hàng từ 3000k

Mã:

HSD: 30/12/2023

Giảm tới 4%

Đơn hàng từ 5000k

Mã:

HSD: 30/12/2023

Giảm tới 5%

Đơn hàng từ lớn hơn 10000k

Mã:

HSD: 30/12/2023

Cam Kết 100% Sản Phẩm Chính Hãng

Thời Gian Giao Hàng: Thông Thường 5-10 ngày; 1 Số SP Sẽ Cần Nhiều Thời Gian Hơn

Giá Trên Website Mang Tính Chất Tham Khảo - Vui Lòng Liên Hệ Hotline Để Cập Nhật Giá Chính Xác

Hỗ Trợ Kỹ Thuật 24/7

Mô tả sản phẩm

Product Overview

Hidden bracket suitable for European standard economy series 45 and 50 series profiles with groove width of 10mm
Two profiles can be connected at right angles, which can be hidden in the profile groove without being exposed, and the connection method is beautiful and exquisite.
All of the products are applicable to profiles with groove width of 10mm, and the mounting method is also used to distinguish L type and E type products. For details, please refer to the applicable examples.

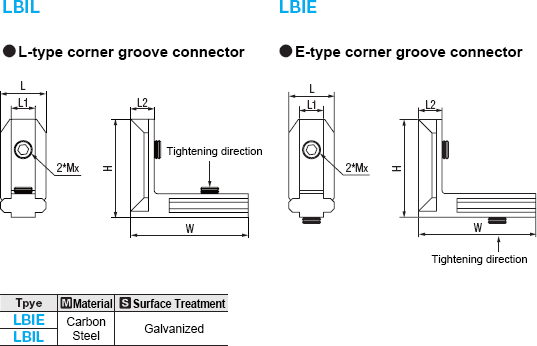

Hidden bracket for series profiles with groove width of 10mm

Hidden bracket for series profiles with groove width of 10mm

Product Feature

【Features】
The product has abundant specifications and types, high quality and low price, and exquisite in appearance.

【Intended Use】
Suitable for hood, machine, display bar and other structures of medium and large equipment.

Specifications Overview

Part Number		M	Shape	L	L1	L2	W	W1	H	Attached screws
Type	No.									M	Quantity
LBIE	10-45	8	E Type	18.4	9.7	7.7	37.8	24.2	31	M8	2
LBIL			L-Type							M8	2

Example of Use

It can be used with European standard profiles with groove width of 10mm to easily and simply complete large-scale frame, hood, stand and other modules of automation equipment.
Hidden bracket for series profiles with groove width of 10mm

Precautions

European standard economy series new products, with different sizes, can only be used in combination with European standard economy series profiles starting with L.
Special hidden connector, suitable for right angle connection of profiles.

IMPORTANT: New products - special accessories for European standard economy series aluminum profiles, can not be used with the existing aluminum alloy profiles of Inmart Việt Nam.
